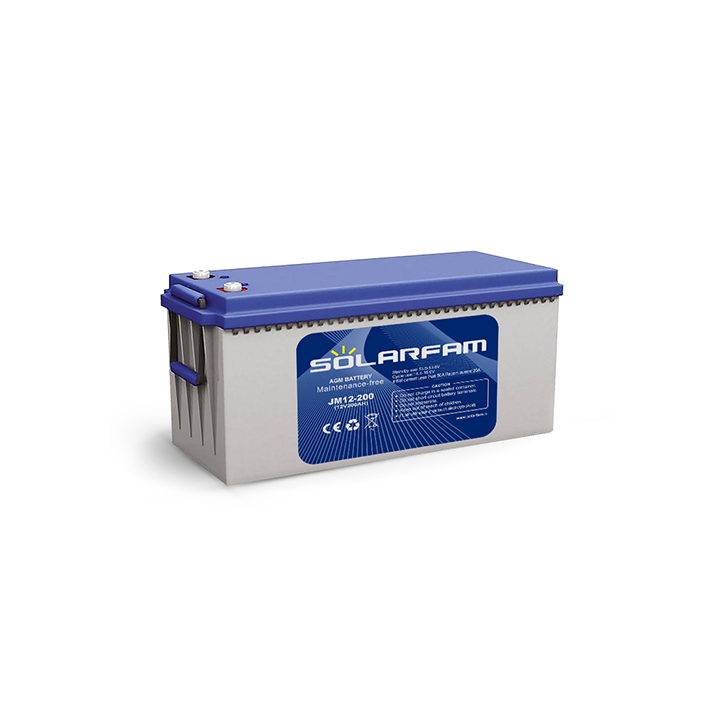

12V 200AH AGM BATTERY

12V 200AH AGM BATTERY

€287.08
Tax included

EU WAREHOUSE IN STOCK

Nominal Voltage: 12V

Nominal Capacity: 200Ah

Design life: 10 years

Terminal: M8

Approx. Weight: Approx 57.0kg (126lbs)

Container Material: ABS

Internal resistance Full charged at 25°C: 3.0 mΩ

Max. Discharge Current: 2400A(5S)

Dimension:522(L)×240(W) ×219(H)×222(TH)

Share

Model JM12-200
Battery Type AGM
Nominal Voltage 12V
Nominal Capacity 200Ah
Design life 10 years
Terminal M8
Approx. Weight Approx 57.0kg (126lbs)
Container Material ABS
Rated Capacity 200Ah    10Hour Rate (20.0A to 10.8V)
161Ah    3Hour Rate 161Ah (53.7A to 10.8V)
131Ah    1Hour Rate 131Ah (131A to 10.5V)
Internal resistance Full charged at 25˚C: 3.0 mΩ
Max. Discharge Current 2400A(5S)
Operating Temperature Discharge: -20 ~50℃(-4~ 122˚F)
Charge : -20 ~50℃(-4~ 122˚F)
Storage: -20 ~50℃(-4~ 122˚F)
Charge Method (25 ˚C) Charge current: Max.50A；Recom.20A
Float Charge voltage(-3mV/℃）:

13.5-13.8V,recom.13.5V(Full floating system)

13.5-13.8V,recom.13.62V(Cycle use system)
Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C)
Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C)
Self discharge 3% of capacity declined per month at 25˚C

Applications

UPS/EPS

Power systems

Telecommunications system

Emergency lighting、Auto control system

Solar/wind generating storage cyclic

Other general purpose



General Features

High corrosion resistant performance: Pb-Ca multi-alloy grid

High energy density and power density

Optimized capability of instant high-current discharging

Excellent charge acceptance ability

Excellent deep cycle discharge capability

Strong high and low temperature performance

Precision sealing technology

Long life

  • Reference
    REF-115-12V200AHAG
  • In stock
    300 Items
