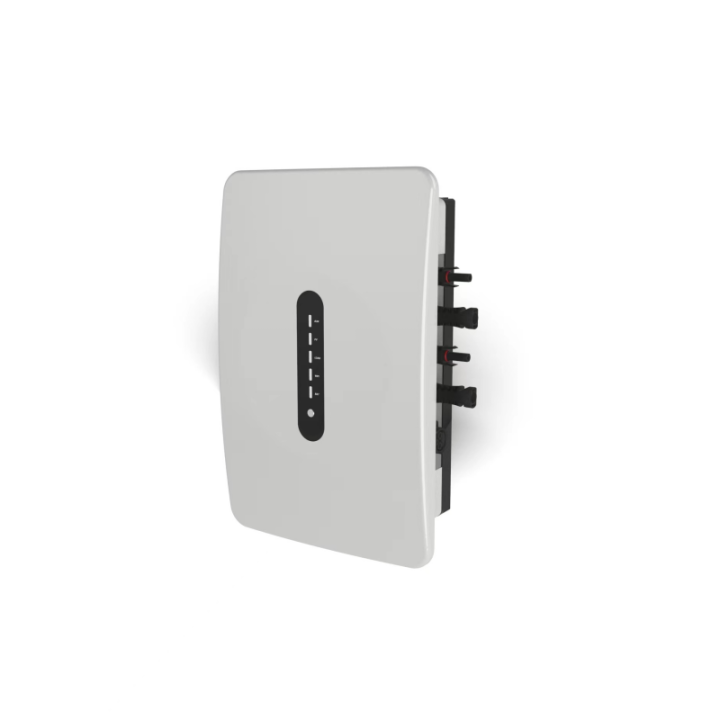

PV HUB

€196.00

Tax included

EU WAREHOUSE IN STOCK

PV input voltage range: 12V-60V

PV input power: 800W×2 Max

PV input voltage range: 12V-60V

PV input power: 800W×2 Max

MODEL NUMBER	AST-1600-2S
PV input voltage range	12V-60V
PV input power	800W×2 Max
output voltage range	18V-55V
output rating	800W×2 Max
battery voltage range	40V-58.4V
battery charging power	1600W Max
EMC grade	CLASS-B
overall weight	≈3.2kg
PCBA weight	≈590g
peak efficiency	98%
MPPT tracking efficiency	99%
battery short-circuit protection current	66A
operating ambient temperature	-20°C~65°C
protection level	IP65
RS485 and CAN	support
Wi-Fi communication	support
overall size	320×200×65mm
PCBA size	280×160×35mm
