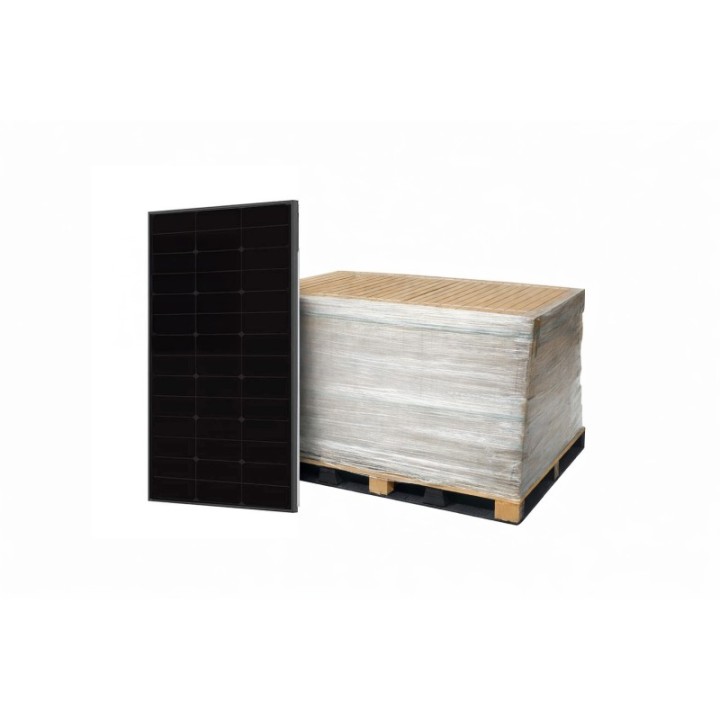

240W BC solar panel pallet 30units
EU WAREHOUSE IN STOCK
75cm lange 4 mm² solarkabel met gemonteerde MC4-connectoren
Twee geïntegreerde bypass-diodes - minimale prestatievermindering bij schaduw
Oppervlak van gehard ESG-zonneglas met weerbestendige coating
Extra robuust frame van geanodiseerd aluminium
Description of the 240W mono solar panel pallet
More electricity – Up to 97% of sunlight hits your solar cells (compared to 85-90% with regular panels)
Cleaner look – No visible grid lines or shiny spots
Better performance – 15-20% more power from the same roof space
Longer lasting – Connections hidden on the back stay protected from weather
Advantages:
♦ Uses BC (Back Contact) solar cells with no front busbars, offering a sleek appearance and higher light utilization.
♦ Lower operating temperature and excellent thermal performance
♦ Reliable technology with long-term stability and lifespan
♦ Ideal for balconies, RVs, and BIPV applications.
Specification:
| Model number | SZBC-240 |
| Nominal Power | 240W |
| Cell Efficiency | >25% |
| Maximum Power Current | 11.82A |
| Maximum Power Voltage | 20.32V |
| Open-circuit Voltage | 23.20V |
| Short-circuit Current | 12.53A |
| Maximum System Voltage | 500V |
| Output Tolerance | 0~+3% |
| Cable (MC4) | 700mm / 2.5mm² |
| Module Structure | Aluminum Frame / Glass / EVA /Backsheet |
| Junction box rating | ≥IP67 |
| Cell | 182*91.875–16*4 |
| Working Temperature | -40~+85℃ |
| Module Dimensions | 1520*760*30mm |
| Weight(Net /Gross) | 11.8/13.3kg |
Scope of application:
Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.
On-board electrical appliances: when using on-board electrical appliances, the original power of the car battery will not lose (car audio, navigator, driving recorder, exhaust fan, car blower, car refrigerator, cell phone, etc.)
Experimental power generation: DIY experiments for schools.
-
ReferenceREF-96-240WBCsola
-
In stock2000 Items
