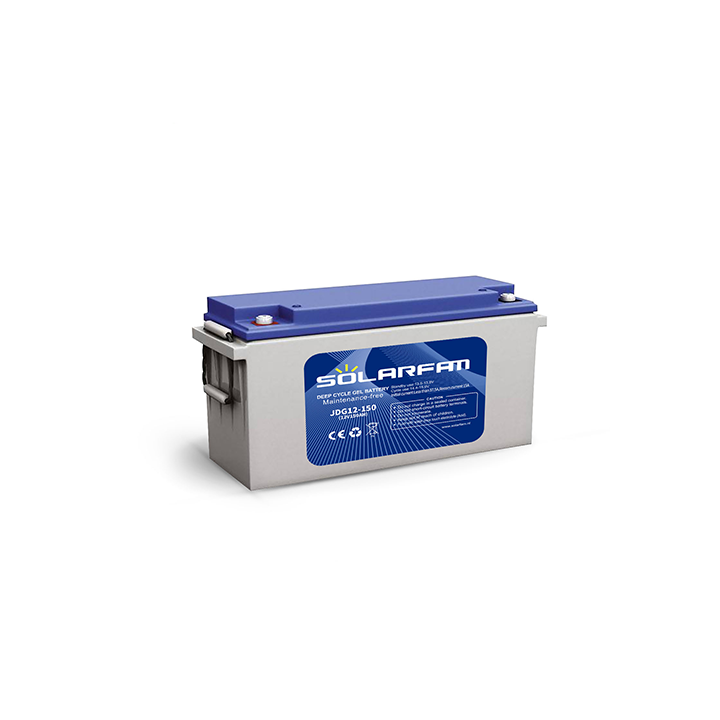

12V 150AH GEL BATTERY

€227.83

Tax included

EU WAREHOUSE IN STOCK

Nominal Voltage: 12V

Nominal Capacity: 150Ah

Design life: 12 years

Terminal: M8

Approx. Weight: Approx 45.0kg (99.3lbs)

Container Material: ABS

Max. Discharge Current: 1800A(5S)

Dimension: 484(L)×170(W) ×241(H)×241(TH)

Model	JDG12-150
Battery Type	GEL
Nominal Voltage	12V
Nominal Capacity	150Ah
Design life	12 years
Terminal	M8
Approx. Weight	Approx 45.0kg (99.2lbs)
Container Material	ABS
Rated Capacity	150Ah 10Hour Rate (15.0A to 10.8V)
	119Ah 3Hour Rate (40.3A to 10.8V)
	96.2Ah 1Hour Rate (96.2A to 10.5V)
Internal resistance	Full charged at 25˚C: 3.6 mΩ
Max. Discharge Current	1800A(5S)
Operating Temperature	Discharge: -40 ~60℃(-40~ 140˚F)
	Charge : -20 ~50℃(-4~ 122˚F)
	Storage: -20 ~50℃(-4~ 122˚F)
Charge Method (25 ˚C)	Charge current: Max.37.5A；Recom.15A
	Float Charge voltage(-3mV/℃）: 13.5-13.8V,recom.13.5V(Full floating system) 13.5-13.8V,recom.13.62V(Cycle use system)
	Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C)
	Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C)
Self discharge	3% of capacity declined per month at 25˚C

Applications

Solar/wind energy and other new energy storage

UPS/EPS

Power systems

Telecommunications system

Emergency lighting、Auto control system

Other general purpose

General Features

Nanosilica colloidal electrolyte and high tin positive plate alloy design to enhance battery performance

Relatively rich electrolyte, high temperature and low temperature performance is superior

Long cycle life, excellent deep cycle discharge ability

Excellent charge acceptance ability

Precision sealing technology

Long life
