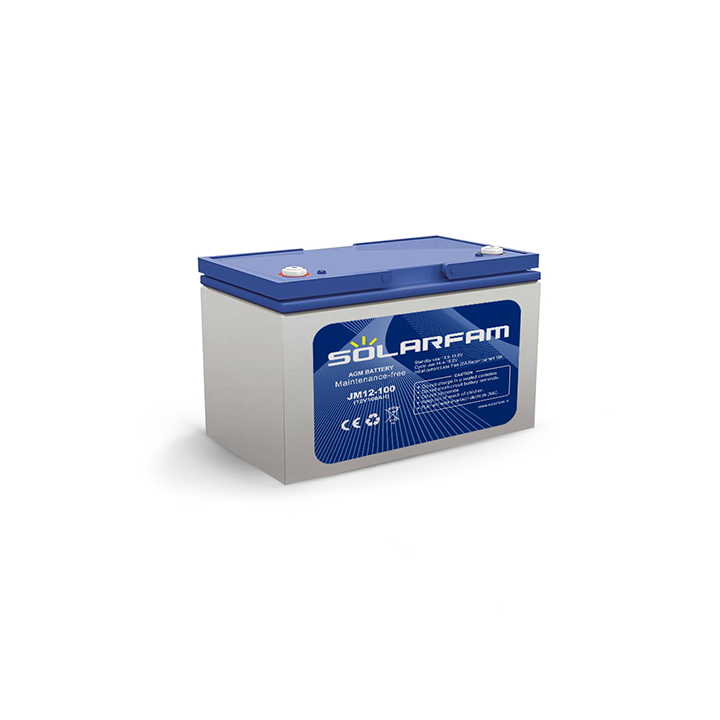

12V 100AH AGM BATTERY

12V 100AH AGM BATTERY

€142.91
Tax included

EU WAREHOUSE IN STOCK

Nominal Voltage: 12V

Nominal Capacity: 100 Ah

Design life: 10 years

Terminal: M8

Approx. Weight: Approx 28.0kg (61.8lbs)

Container Material: ABS

Internal resistance: Fully charged at 25°C; 5.0 mΩ

Max. Discharge Current: 1200A(5S)

Charge current: Max. 25A; Recom.10A

Dimension: 330(L)×171(W) ×216(H)×219(TH)

Share

Model JM12-100
Battery Type AGM
Nominal Voltage 12V
Nominal Capacity 100Ah
Design life 10 years
Terminal M8
Approx. Weight Approx 28.5kg (62.8lbs)
Container Material ABS
Rated Capacity 100Ah    10Hour Rate (10.0A to 10.8V)
80.7Ah    3Hour Rate (26.9A to 10.8V)
65.5Ah    1Hour Rate (65.5A to 10.5V)
Internal resistance Full charged at 25˚C: 10.0 mΩ
Max. Discharge Current 1200A(5S)
Operating Temperature Discharge: -20 ~50℃(-4~ 122˚F)
Charge : -20 ~50℃(-4~ 122˚F)
Storage: -20 ~50℃(-4~ 122˚F)
Charge Method (25 ˚C) Charge current: Max.25A；Recom.10A
Float Charge voltage(-3mV/℃）:

13.5-13.8V,recom.13.5V(Full floating system)

13.5-13.8V,recom.13.62V(Cycle use system)
Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C)
Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C)
Self discharge 3% of capacity declined per month at 25˚C

Applications

UPS/EPS

Power systems

Telecommunications system

Emergency lighting、Auto control system

Solar/wind generating storage cyclic

Other general purpose



General Features

High corrosion resistant performance: Pb-Ca multi-alloy grid

High energy density and power density

Optimized capability of instant high-current discharging

Excellent charge acceptance ability

Excellent deep cycle discharge capability

Strong high and low temperature performance

Precision sealing technology

Long life

  • Reference
    REF-117-12V100AHAG
  • In stock
    300 Items
