• New

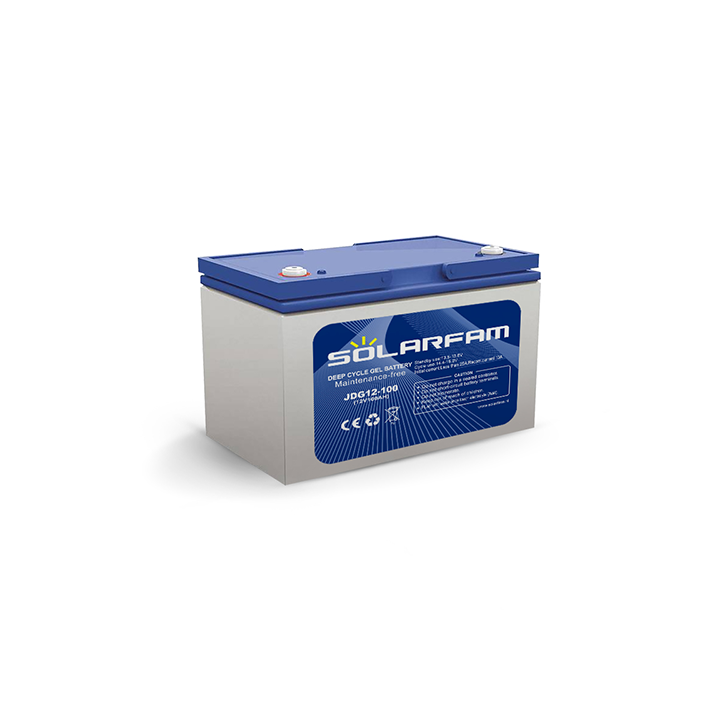

12V 100AH GEL BATTERY

12V 100AH GEL BATTERY

€148.21
Tax included

EU WAREHOUSE IN STOCK

Nominal Voltage: 12V

Nominal Capacity: 100Ah

Design life: 10 years

Terminal: M8

Approx. Weight: Approx 29.5kg (65.0lbs)

Container Material: ABS

Internal resistance: Fully charged at 25°C: 5.2 mΩ

Max. Discharge Current: 1200A(5S)

Dimension: 330(L)×171(W) ×216(H)×219(TH)

Share

Model JDG12-100
Battery Type GEL
Nominal Voltage 12V
Nominal Capacity 100Ah
Design life 12 years
Terminal M8
Approx. Weight Approx 29.5kg (65.0lbs)
Container Material ABS
Rated Capacity 100Ah    10Hour Rate (10.0A to 10.8V)
48.9Ah    3Hour Rate   (26.3A to 10.8V)
64.2Ah    1Hour Rate   (64.2A to 10.5V)
Internal resistance Full charged at 25˚C: 5.2 mΩ
Max. Discharge Current 1200A(5S)
Operating Temperature Discharge: -40 ~60℃(-40~ 140˚F)
Charge : -20 ~50℃(-4~ 122˚F)
Storage: -20 ~50℃(-4~ 122˚F)
Charge Method (25 ˚C) Charge current: Max.25A；Recom.10A
Float Charge voltage(-3mV/℃）:

13.5-13.8V,recom.13.5V(Full floating system)

13.5-13.8V,recom.13.62V(Cycle use system)
Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C)
Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C)
Self discharge 3% of capacity declined per month at 25˚C

Applications

Solar/wind energy and other new energy storage

UPS/EPS

Power systems

Telecommunications system

Emergency lighting、Auto control system

Other general purpose



General Features

Nanosilica colloidal electrolyte and high tin positive plate alloy design to enhance battery performance

Relatively rich electrolyte, high temperature and low temperature performance is superior

Long cycle life, excellent deep cycle discharge ability

Excellent charge acceptance ability

Precision sealing technology

Long life

  • Reference
    REF-114-12V100AHGE
  • In stock
    300 Items
