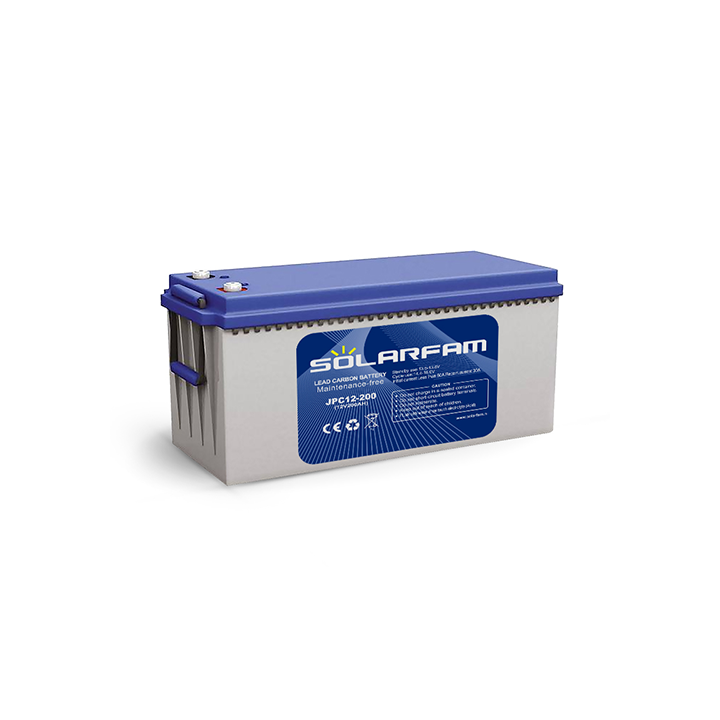

12V 200AH Lead-carbon BATTERY

12V 200AH Lead-carbon BATTERY

€311.12
Tax included

EU WAREHOUSE IN STOCK

Nominal Voltage: 12V

Nominal Capacity: 200Ah

Design life: 15 years

Terminal: M8

Approx. Weight: Approx 61.5kg (136lbs)

Container Material: ABS

Max. Discharge Current: 2400A(5S)

Dimension: 522(L)×240(W) ×219(H)×222(TH)

Share

Model JPC12-200
Battery Type Lead-carbon
Nominal Voltage 12V
Nominal Capacity 200Ah
Design life 15 years
Terminal M8
Approx. Weight Approx 62.5kg (137.8lbs)
Container Material ABS
Rated Capacity 200Ah    10Hour Rate (20.0A to 10.8V)
163Ah     3Hour Rate   (54.2A to 10.8V)
132Ah     1Hour Rate   (132A to 10.5V)
Internal resistance Full charged at 25˚C: 2.9 mΩ
Max. Discharge Current 2400A(5S)
Operating Temperature Discharge: -40 ~60℃(-40~ 140˚F)
Charge : -20 ~50℃(-4~ 122˚F)
Storage: -20 ~50℃(-4~ 122˚F)
Charge Method (25 ˚C) Charge current: Max.100A；Recom.20~40A
Float Charge voltage(-3mV/℃）:

13.5-13.8V,recom.13.5V(Full floating system)

13.5-13.8V,recom.13.62V(Cycle use system)
Equalize charge:13.8-14.1V,recom.14.1V(-4mV/ ˚C)
Cycle charge:14.4-15.0V,recom.14.4V(-5mV/ ˚C)
Self discharge

3% of capacity declined per month at 25˚C

Applications

Solar/wind energy and other new energy storage

Hybrid vehicles, electric bicycles, and other new energy vehicles

Other backup or cycle purposes



General Features

Lead-carbon composite negative plate, both capacitance, and battery characteristics

Long cycle life, excellent deep cycle discharge ability

Excellent charge acceptance ability

Optimized capability of instant high-current discharging

Strong high and low temperature performance

Precision sealing technology

  • Reference
    REF-109-12V200AHLe
  • In stock
    1000 Items
